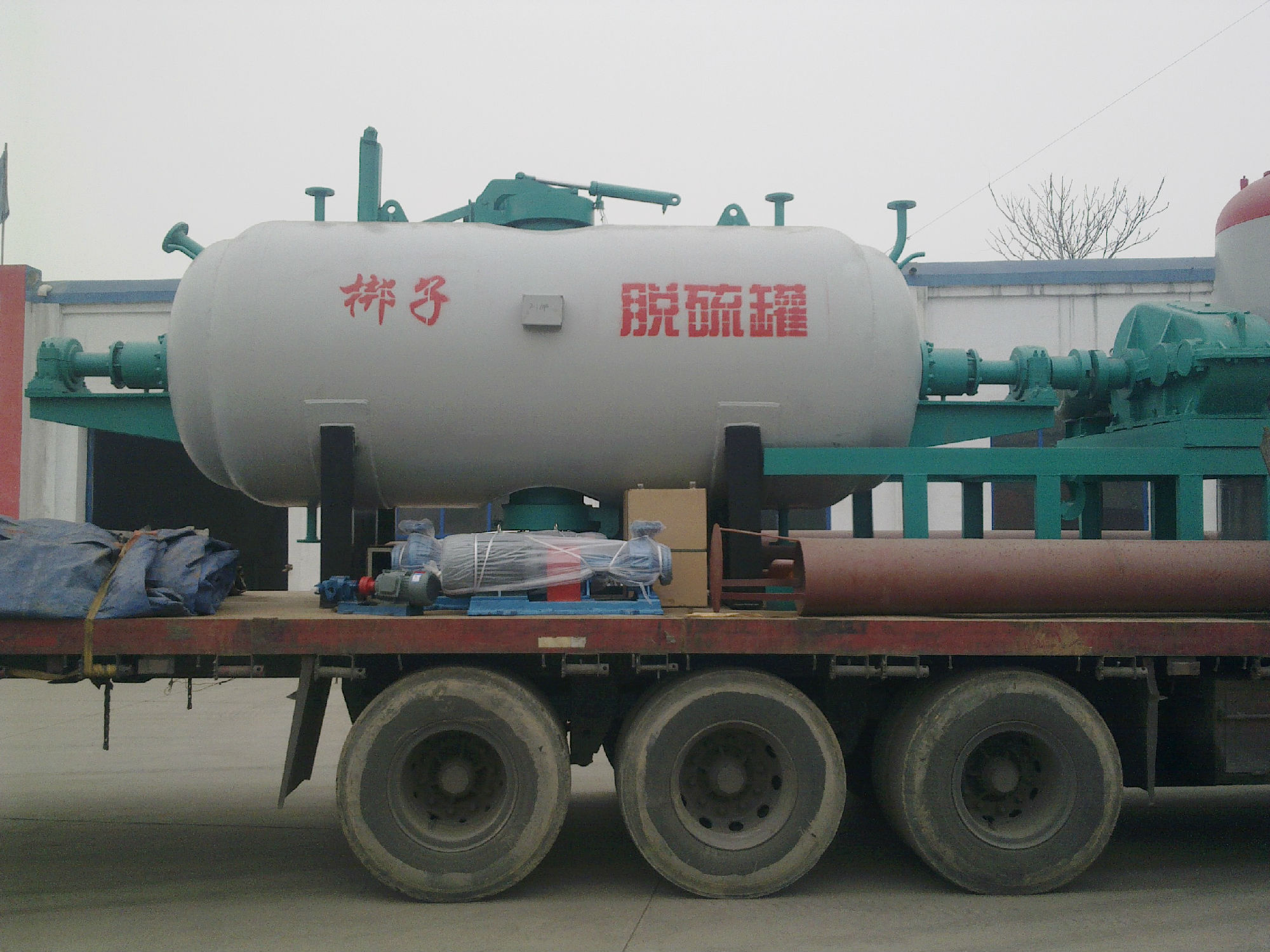

动态脱硫罐

再生胶脱硫罐

再生胶动态脱硫罐

一，用途（Use）
该产品用于将粉末状硫化胶与软化剂、活化剂及水等置于罐内，在连续搅拌下密闭加热，以使胶粉达到均匀有效胶硫目地，是采用高温动态脱硫新工艺的关键设备。
This product is used for that in order to reach even and effective desulfidation for rubber powder, put pulverous crosslinked rubber, softener, activator and water into the pot ,heat hermetically and mix contlnuously, adopted key equipment for the technology of high temperature dynamic desulfidation.

二，特点(characteristics):

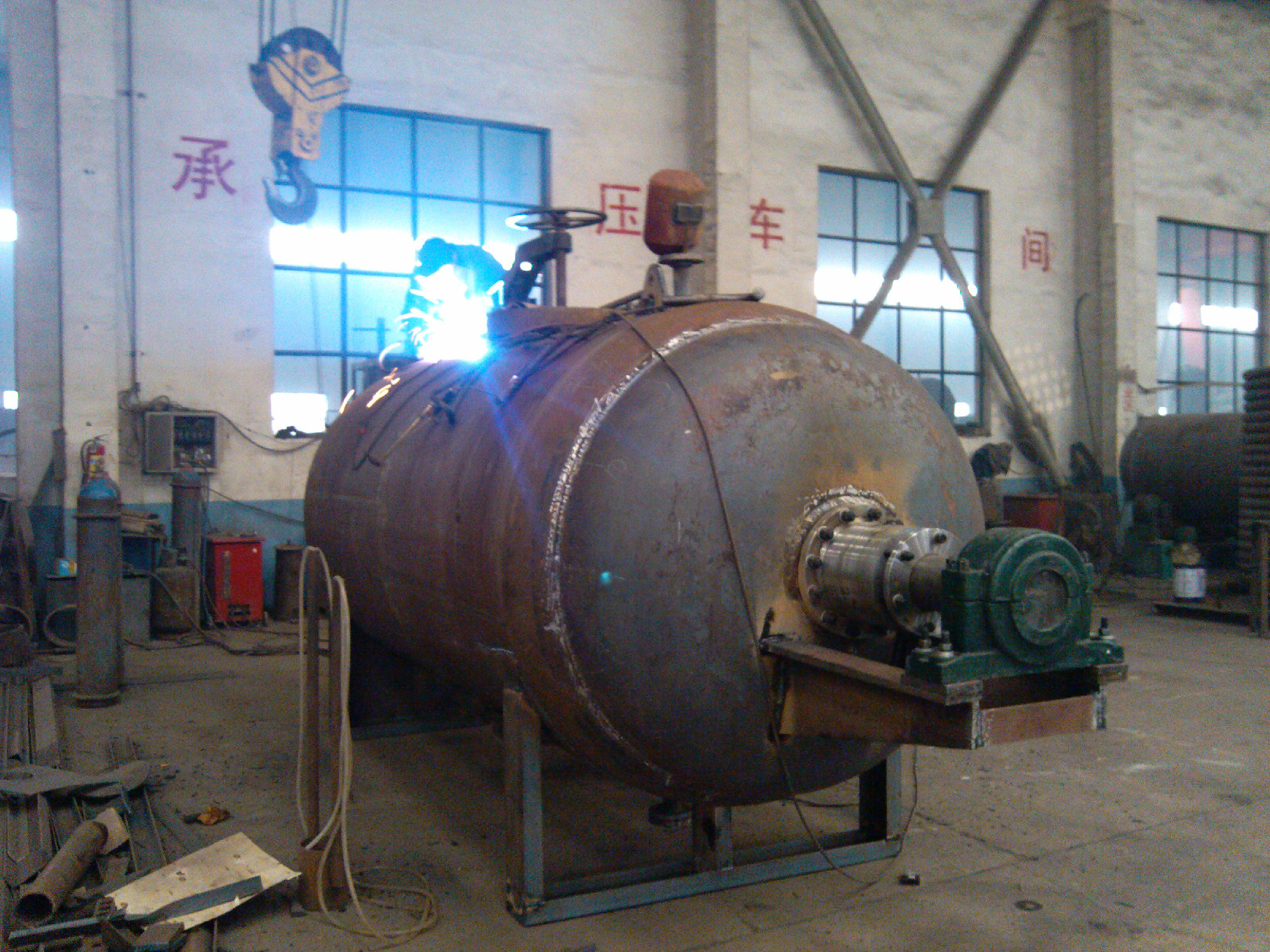

该产品为卧式II类压力容器，用导热油加热。罐口开关门有全自动和手动二种形式供用户选择。罐体上部为加料口、下部为出料口。全自动动态罐开关门由液压控制。手动动态罐开关门采用人工机械错口手动开关门，以上两种动态罐均与零压开关连锁，确保安全。搅拌器由JZQ系列减速器通过双排链轮传动或直给式转动，正反转可自动控制。搅拌浆形式为带状与附壁组合式。压力容器部件按GB150-98《钢制压力容器》标准设计、制造。由河北省锅炉压力容器监督检测所监检验收。
This product is a horizontal pressure vessel Type II, heats up with the heat conduction oil. Customers could select two ways-automatic and manual operation for pot gate opening and closing. Upside of the pot is charge port, and downside is discharge port. Full auto-dynamic pot opening and closing gate is controlled by hydraulic pressure. Adopt manual mechanical alternate out hand opening and closingate for the manual dynamic opening and closing gate. Above two dynamic pots are linked to the zero pressures witch to ensure safety. Adopt JZQ series reducer through douole row chain wheel rotating or direct driving for the blender, positive and negative rotating could be controlled automatically. The shape of mixing propeller is assorted of ribbon and mural. The parts of pressure vessel are designed and manufactured according to BG150-98 “Steel Pressure Vessel” and have been inspected examination and approved by. Hebei province Technology Inspection Office of Boiler and Pressure Vessel.

动态脱硫罐性能参数（2.1MPa）：

参数 Parameter 内容Content	型号 Model
	ZT─3.3R		ZT─4.5R	ZT—6R		ZT—8R
设计压力Design Pressure	2.1Mpa		2.1Mpa	2.1Mpa		2.1Mpa
工作压力Working Pressure	1.8Mpa		1.8Mpa	1.8Mpa		1.8Mpa
设计温度Design Temperature	2170C		2170C	2170C		2170C
工作温度Working Temperature	2120C		2120C	2120C		2120C
有效容积Active Volume	3.0m³		4.5m³	6m³		8m³
搅拌器转速Rotate Speed of Blender	16r/min		16r/min	15r/min		15r/min
夹套容积Jacket Volume	0.72m³		1.04m³	1.6m³		1.8m³
夹套设计压力Design Pressuer of Jacket	0.1Mpa		0.1Mpa	0.1Mpa		0.1Mpa
夹套工作压力Working Pressure of Jacket	常压		常压	常压		常压
加热方式Heating Method	导热油 Heat conduction oil
换热面积Hear Exchange Area	8.18㎡	12.55㎡		15㎡	17㎡
电机功率Motor Power	15kw	18.5kw		18.5kw	30kw

动态脱硫罐性能参数(3.0MPa)：

参数 Parameter 内容Content	型号 Model
	ZT─3.3R		ZT─4.5R	ZT—6R		ZT—8R
设计压力Design Pressure	3.0Mpa		3.0Mpa	3.0Mpa		3.0Mpa
工作压力Working Pressure	2.85Mpa		2.85Mpa	2.85Mpa		2.85Mpa
设计温度Design Temperature	2350C		2350C	2350C		2350C
工作温度Working Temperature	2300C		2300C	2300C		2300C
有效容积Active Volume	3.0m3		4.5m3	6m3		8m3
搅拌器转速Rotate Speed of Blender	16r/min		16r/min	15r/min		15r/min
夹套容积Jacket Volume	0.72m3		1.04m3	1.6m3		1.8m3
夹套设计压力Design Pressuer of Jacket	0.1Mpa		0.1Mpa	0.1Mpa		0.1Mpa
夹套工作压力Working Pressure of Jacket	常压		常压	常压		常压
加热方式Heating Method	导热油 Heat conduction oil
换热面积Hear Exchange Area	8.18㎡	12.55㎡		15㎡	17㎡
电机功率Motor Power	15kw	18.5kw		18.5kw	30kw

动态脱硫罐性能参数（4.0Mpa）：

参数 Parameter 内容Content	型号 Model
	ZT─3.3R	ZT─4.5R		ZT—6R		ZT—8R
设计压力Design Pressure	4.0Mpa	4.0Mpa		4.0Mpa		4.0Mpa
工作压力Working Pressure	3.65Mpa	3.65Mpa		3.65Mpa		3.65Mpa
设计温度Design Temperature	252°C	252°C		252°C		252°C
工作温度Working Temperature	246°C	246°C		246°C		246°C
有效容积Active Volume	3.0m3	4.5m3		6m3		8m3
搅拌器转速Rotate Speed of Blender	16r/min	16r/min		15r/min		15r/min
夹套容积Jacket Volume	0.72m3	1.04m3		1.6m3		1.8m3
夹套设计压力Design Pressuer of Jacket	0.1Mpa	0.1Mpa		0.1Mpa		0.1Mpa
夹套工作压力Working Pressure of Jacket	常压	常压		常压		常压
加热方式Heating Method	导热油 Heat conduction oil
换热面积Hear Exchange Area	8.18㎡		12.55㎡	15㎡	17㎡
电机功率Motor Power	15kw		18.5kw	18.5kw	30kw
